Ferodo Disc Brake Rotor 250mm - FMD0396MXR

Free Shipping on Orders Over $50!*

* Total order weight must not exceed 10kg. Freight charges may apply. Within Australia only.

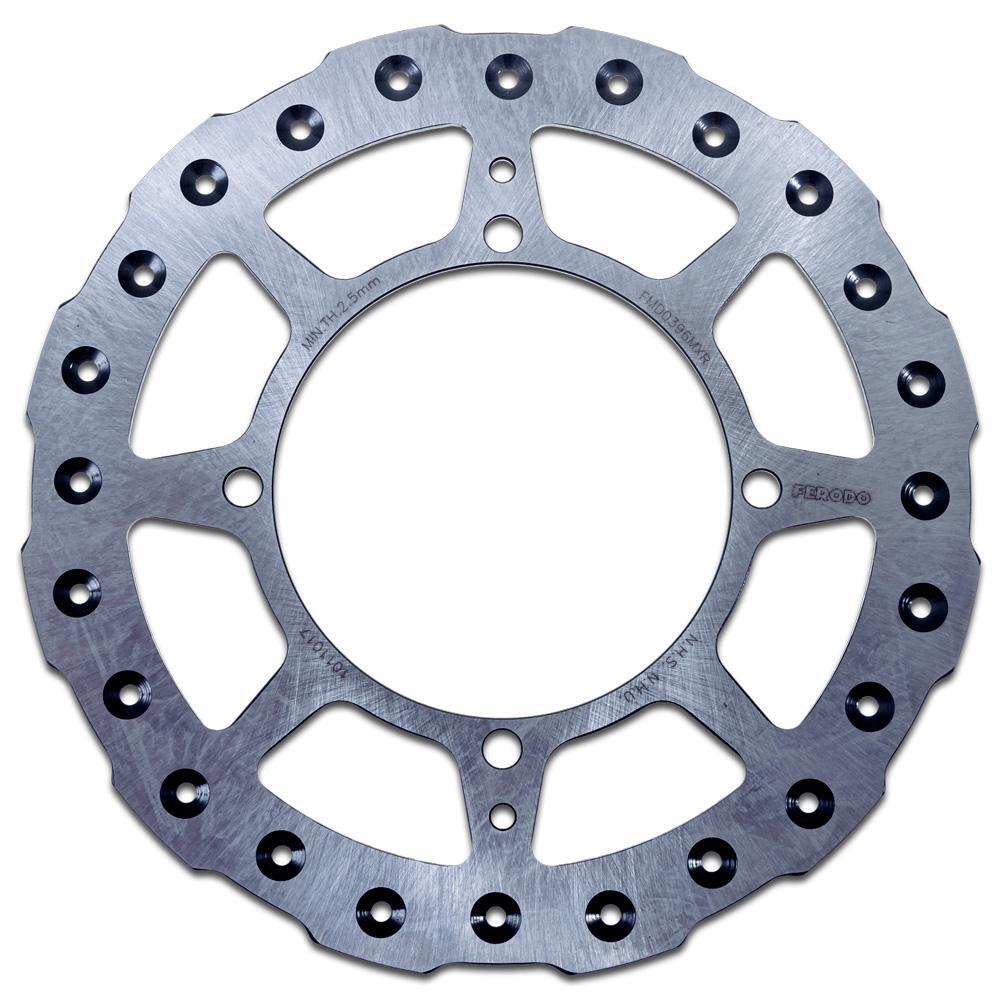

  • FMD0396MXR - Rear for Suzuki models.
  • Check item fitment with our supplier Link International. Use the 'Select Your Bike' search there, then return here with the exact product code of the part you'd like to order.
  • Features :
    • Stepped Outer Profile - To enhance heat dissipation and help resist warping at high temperatures.
    • Self Cleaning Design - Unique countersunk holes assist with the removal of dirt build-up on the brake pads and disc rotor.
    • Lightweight Design - Reduces unsprung weight effect.
    • Highest Quality - Machined from a high carbon grade of stainless steel and fully heat-treated for improved disc and pad wear life benefits.
  • Manufactured to ISO 9001 Standards to ensure a high-quality product for competition and off-road applications. Suitable for FERODO Sintered SG for wet muddy conditions and Non Sintered P or EF formulations in dry and dusty conditions for excellent braking performance.

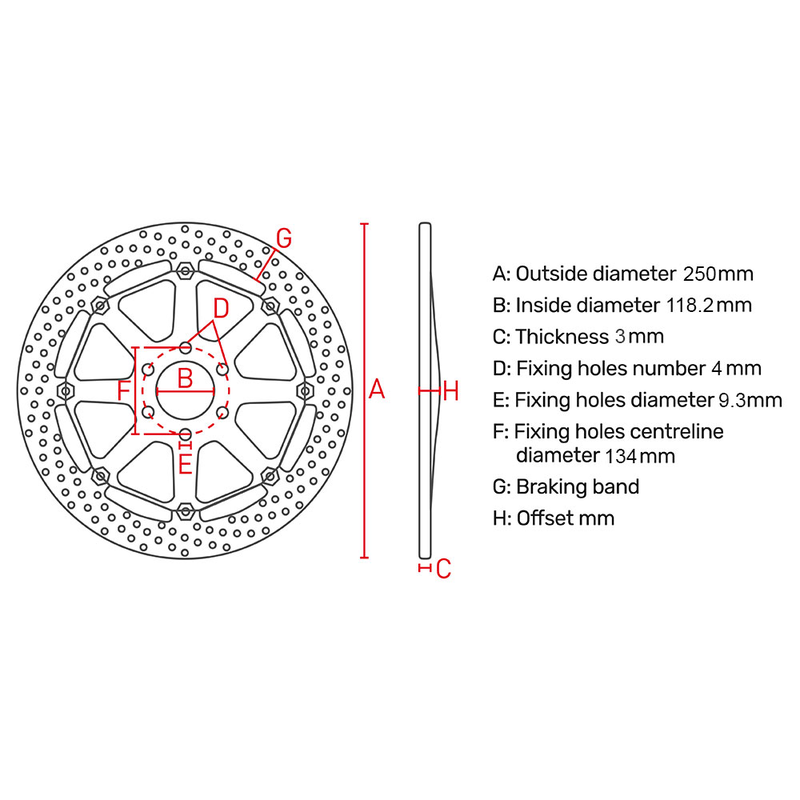

Dimensions of FMD0396MXR:

Details Values
OD - Outer Diameter 250.0 mm
ID - Inner Diameter 118.2 mm
PCD - Mounting Diameter 134.0 mm
Thickness 3.0 mm
Number of Mounting Holes 4
Mounting Hole diameter 9.3 mm
Fixing Type Straight Mount
Notes:
  1. New brake disc rotors and brake pads (either front or rear) should be fitted by a qualified technician.
  2. The Brake System comprising of master cylinder and caliper should be cleaned and serviced with new Hi Temp Racing Brake Fluid.
  3. It is essential to follow the correct 'bed-in' procedure to achieve the best braking performance.
  4. Caution - the new FERODO disc rotor should be thoroughly cleaned to remove the protective coating prior to fitment.
  5. Sit back and view the FERODO 'How To' video below for changing brake pads. The same principles apply to all types of motorcycles with disc pads.
